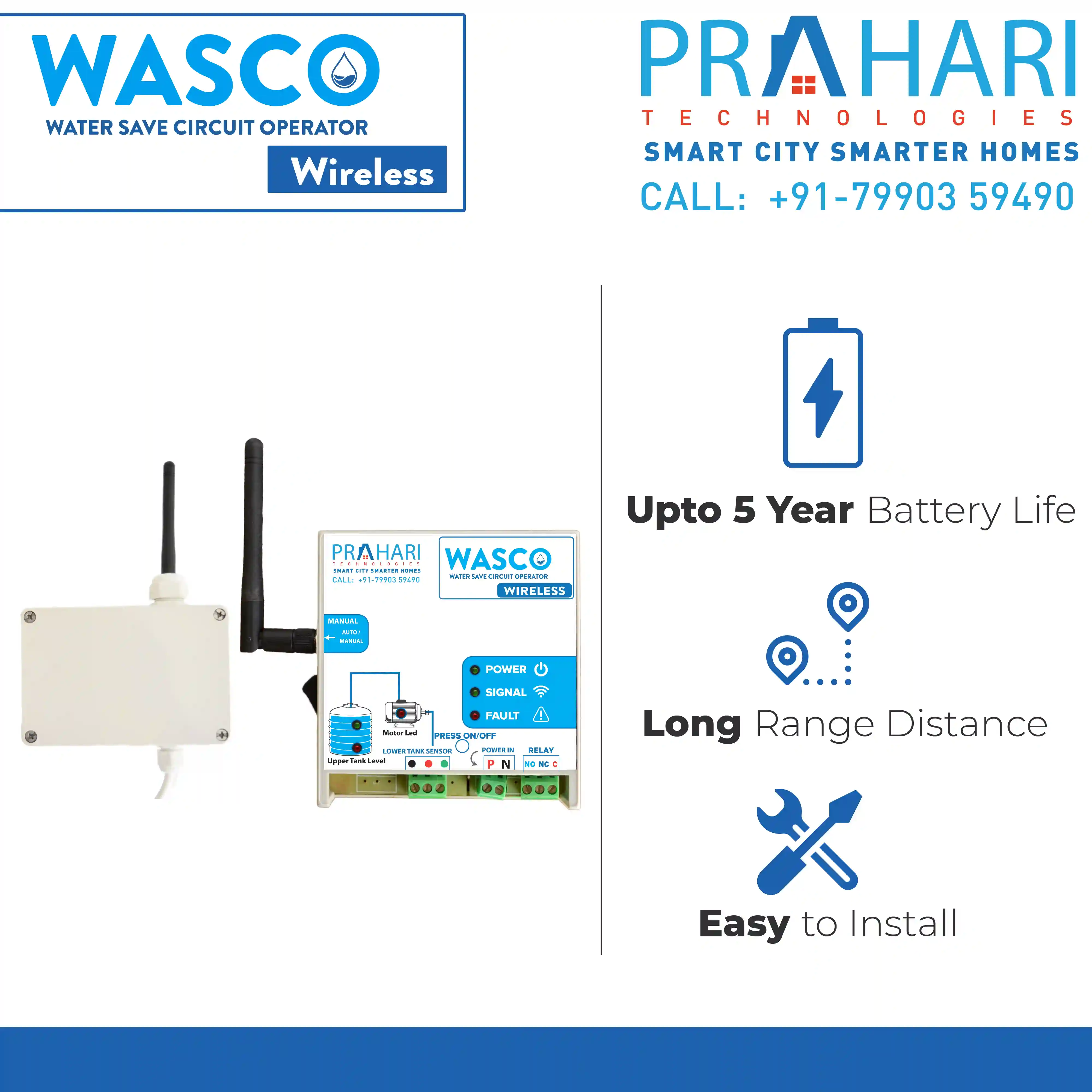

Wasco Stands for Water Saving Circuit Operator.Wasco Wire Mini is the simplest Basic water level Controller.It is the most economical and energy efficient product from Prahari Technologies. The water level controller can switch ON or switch OFF the pump, to maintain the pre defined water level at the storage or overhead tanks.Low AC Voltage sensing circuit to avoid polarization of electrodes in water. These special stainless steel plastic molded conductive electrodes are Long life sensors and do not require frequent cleaning or replacement.This Water level controllers Indicator is highly recommended for metro cities or areas where drinking water is supplied through pipelines which are further distributed in homes, hotels, societies etc.At large our systems not only help you but your neighbors and society, also as it reduces the wastage of water by cutting down any further overflow than what you need. It also Saves You Time by not waiting to switch off motor and Money by saving electricity. It also saves your motor by dry run protection.
Features Of Product
- Microcontroller based intelligent circuit

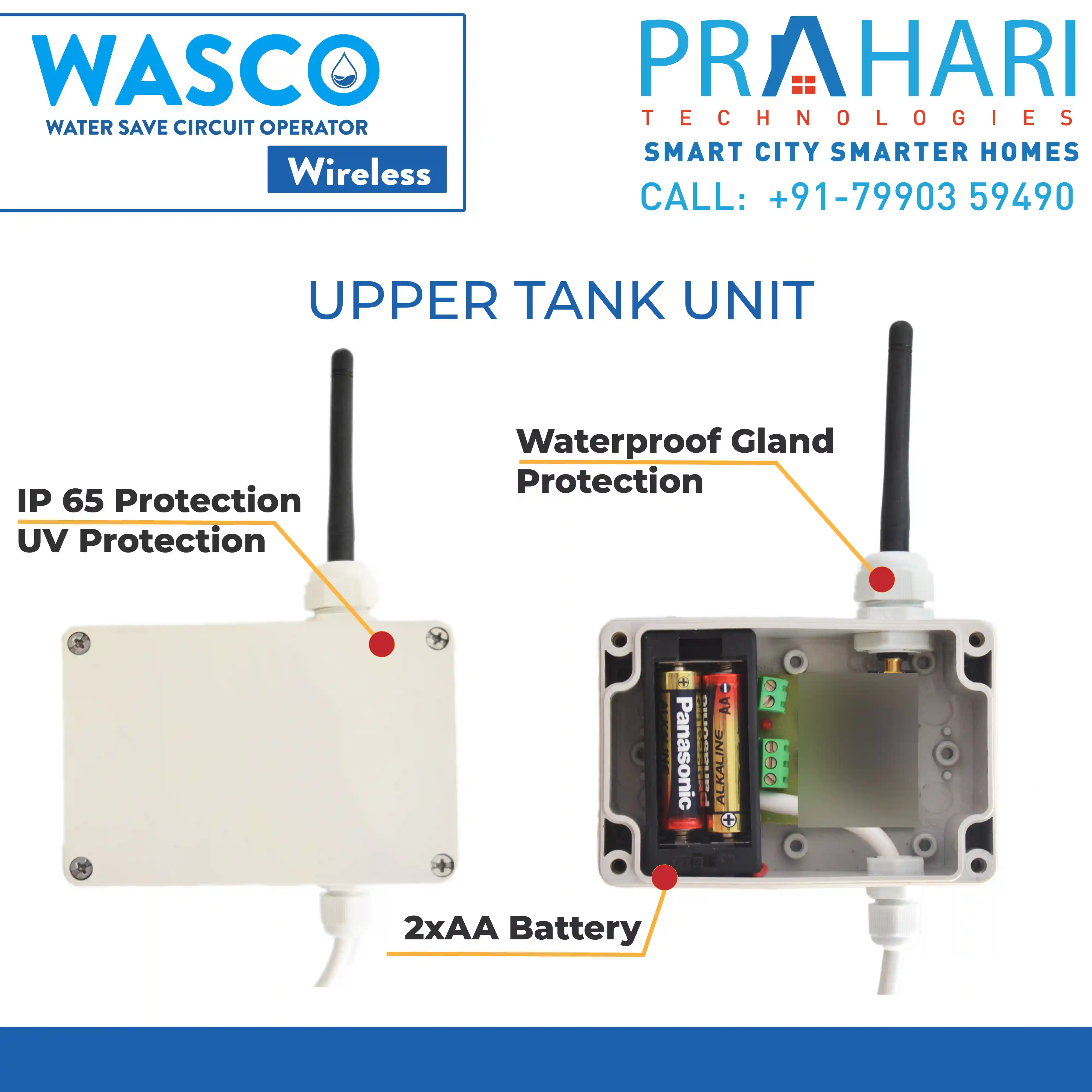

- Water Proof Upper Tank Unit
- Battery Life upto 2 Years
- Onboard 30A relay mounted
- Capable of controlling up to 3HP motor

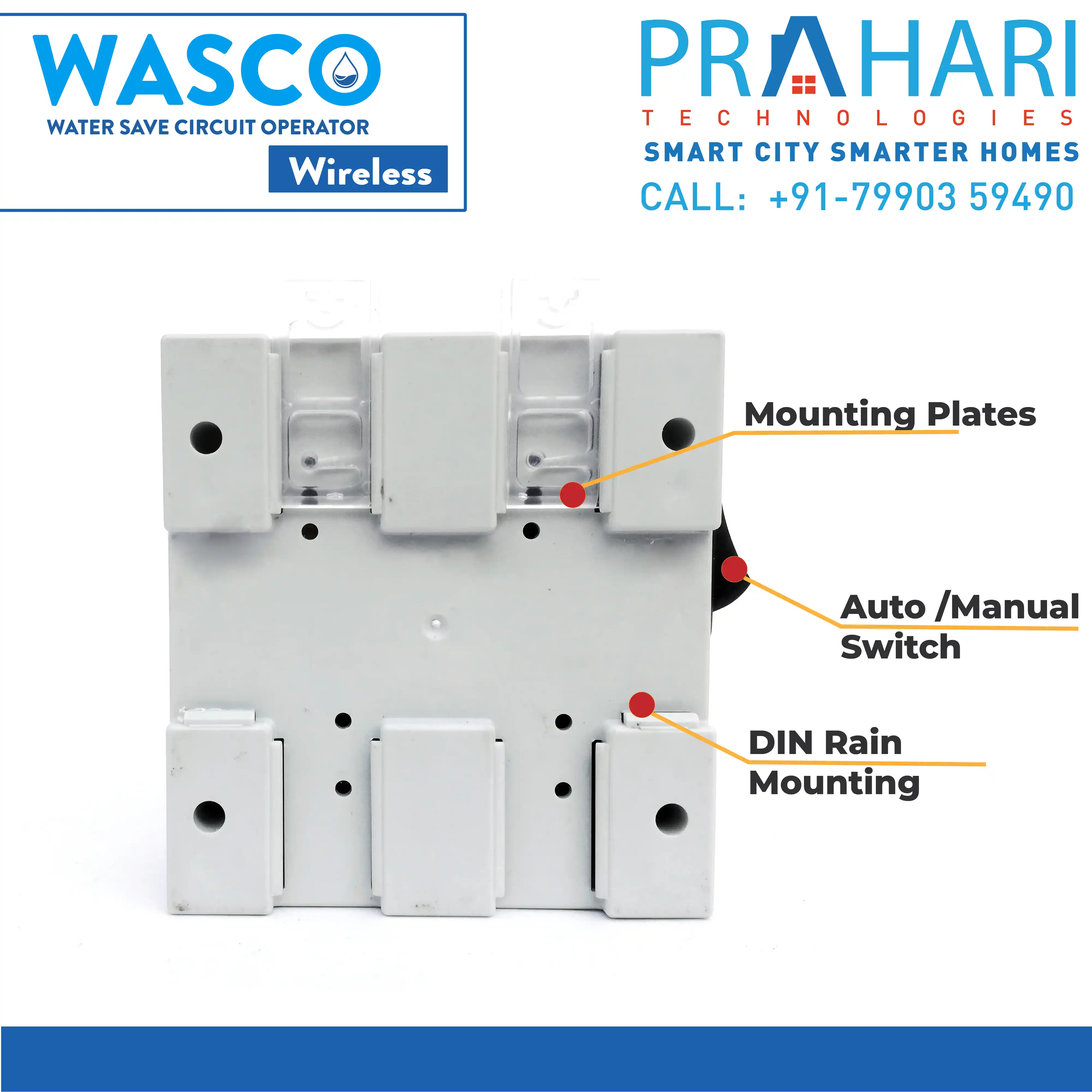

- DIN Rail Mounting
Product Specification
| Type | Description |
|---|---|
| Relay Capacity | 30A |
| Motor Support | Upto 3 HP |
| Input Voltage | 230 +- 20 |
| Upper Tank Sensor | 2(Upper+Lower Level) |
| Lower Tank Sensor | 2(Upper+Lower Level) |
| Distance | 1 to 8 Floor |
| Installation | DIN Rail |
| Battery Type | 2 x AA |
| Net Weight | 600g |
| Warranty | 1 Year |
| Wiring | Plug-in |
| LED Display | Motor On + Power On |
To Get Product
You can Get Product Contact Us Via Call on +91-7990359490.
